Single chain drive roller machine
Purpose:
The single chain drive pulley machine is suitable for the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be transported on pallets or turnover boxes.
Features:
The whole machine is driven by a ring chain. The chain runs in a special guide rail and is driven in the middle. It has large conveying capacity and light operation Low noise and other characteristics.
|

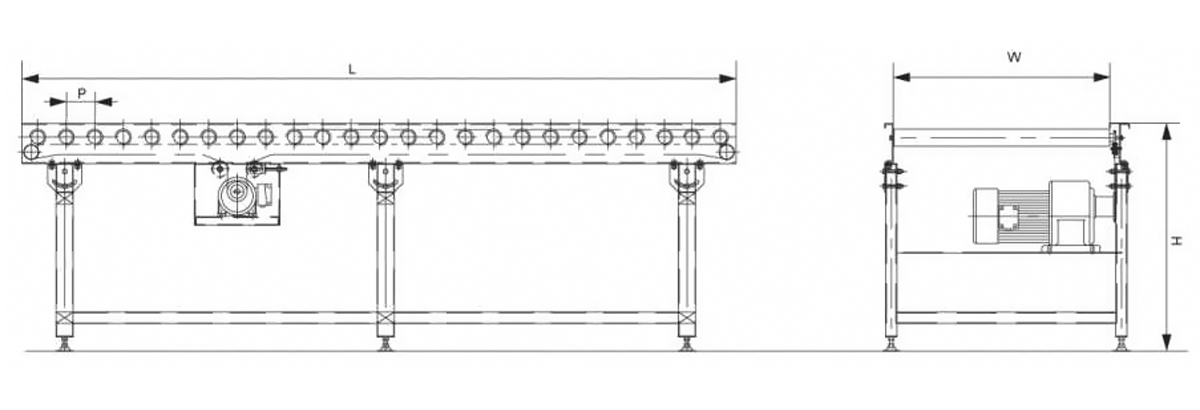

Roller diameter (d)
|
Φ38,Φ42,Φ50,Φ60,Φ76,Φ89
|
|
Roller spacing (P)
|
75,100,150
|
|
Machine length (L)
|
Max 20m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 140*40*15*3, aluminum profile 130*23
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
