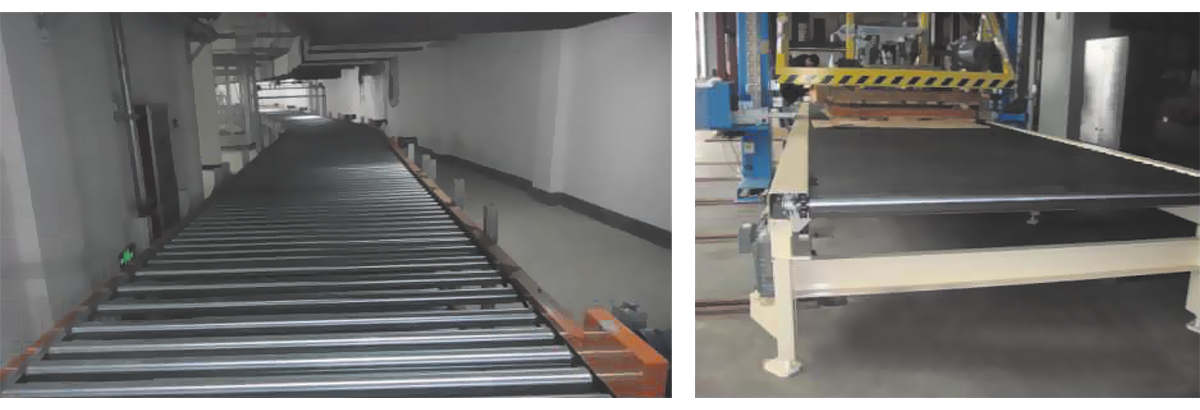

Double chain drive roller machine
Purpose:
It is applicable to the transportation and bulk materials of various boxes, bags, pallets and other pieces of goods Small or irregular items need to be transported on pallets or turnover boxes.
Features:
The whole machine is driven by double chain in series, with large conveying capacity The transmission is stable and can realize a variety of collinear shunt transmission characteristics.
|

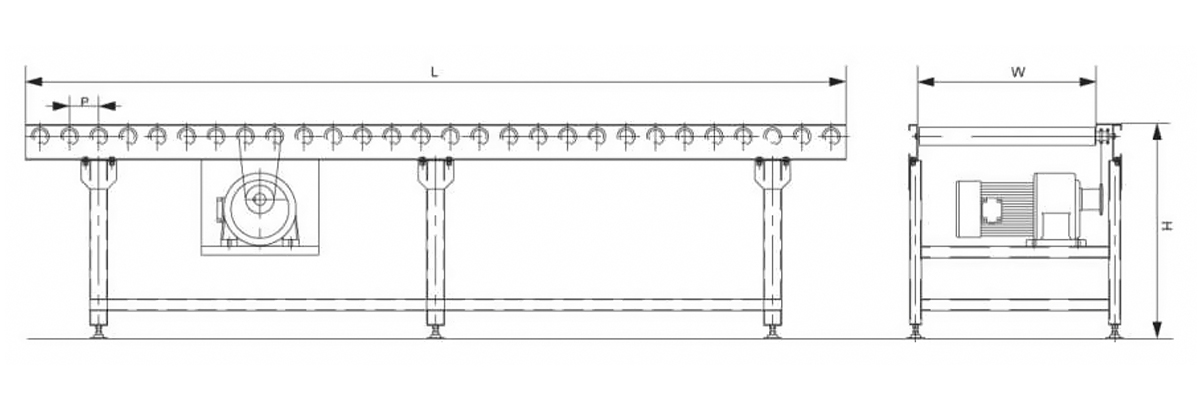

Roller diameter (d)
|
Φ38,Φ42,Φ50,Φ60,Φ76,Φ89
|
|
Roller spacing (P)
|
101.5,111,127
|
|
Machine length (L)
|
Max 10m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*15*3, aluminum profile 80*40
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
