Mesh belt chain conveyor
Purpose:
Suitable for indoor environment, suitable for transporting grain and small particle materials in bulk or packaging
Features:
Economical and applicable High cost performance, modular design, easy assembly and maintenance, less power consumption, low energy consumption and long service life of the conveyor
|

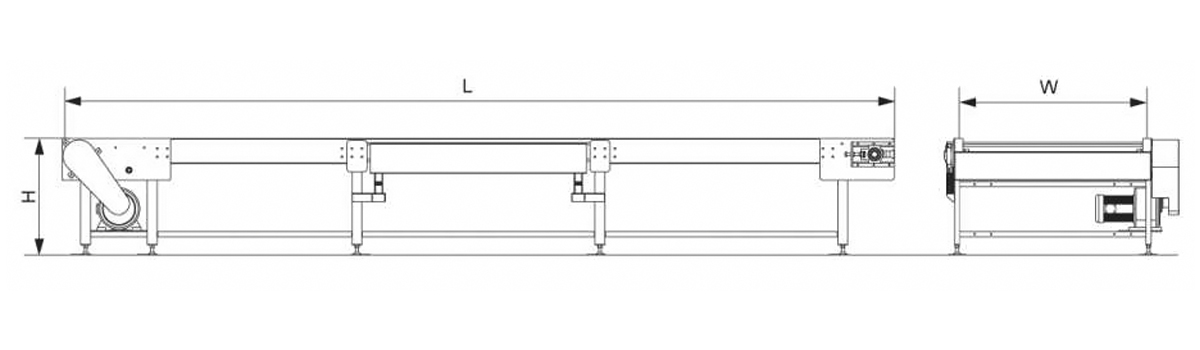

Machine length (L)
|
Max 20m
|
|
Machine height (H)
|
500-1500
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Frame profile
|
folded plate 150*40*15*3
|
|
Outrigger profile
|
Square tube, channel steel
|
|
Mesh belt material
|
Stainless steel, carbon steel galvanized, engineering plastic
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
