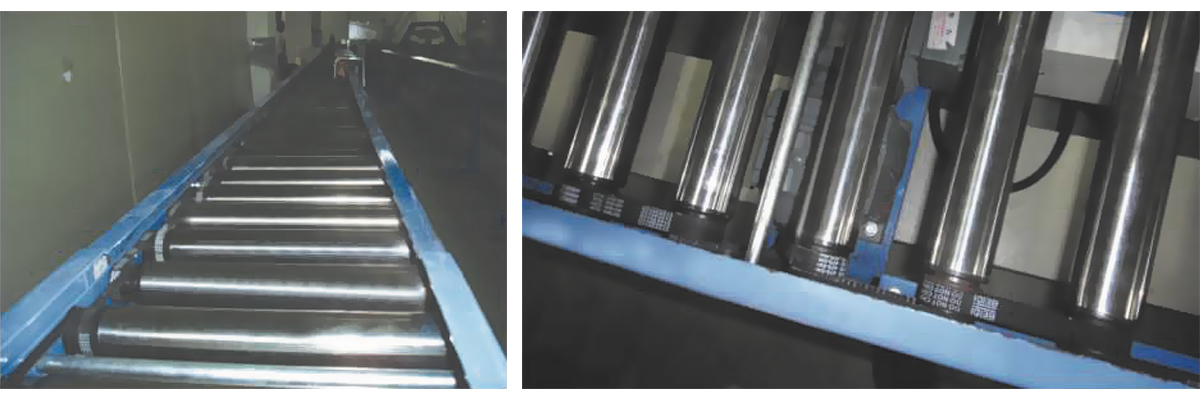

Synchronous belt drive roller machine
Purpose:
It is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be placed on pallets or transported in turnover boxes
Features:
Synchronous belt transmission combines the advantages of belt transmission, chain transmission and gear transmission, which can ensure accurate transmission ratio, high transmission speed, low noise and good wear resistance, but its manufacturing and installation accuracy requirements are high and the center distance requirements are strict
|

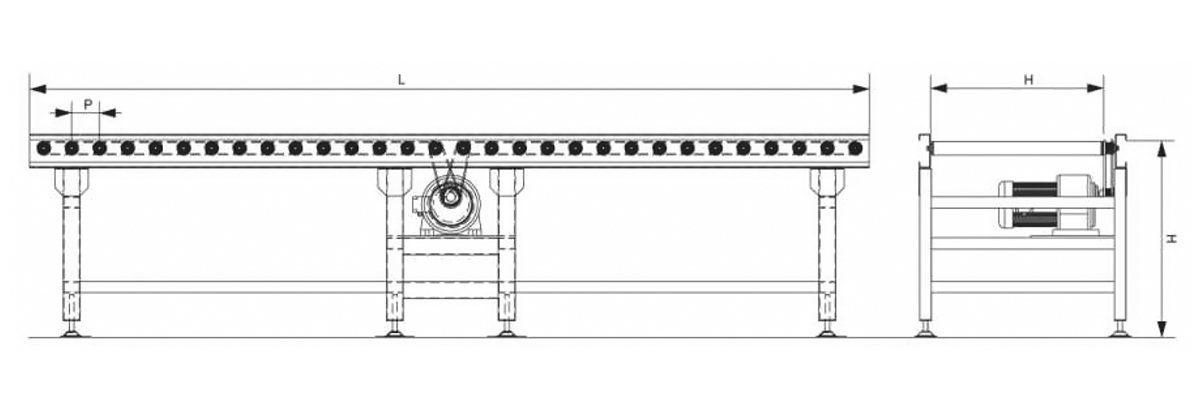

Roller diameter (d)
|
Φ50,Φ60
|
|
Roller spacing (P)
|
75,100,150
|
|
Machine length (L)
|
Max 10m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*15*3, aluminum profile 80*40
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
