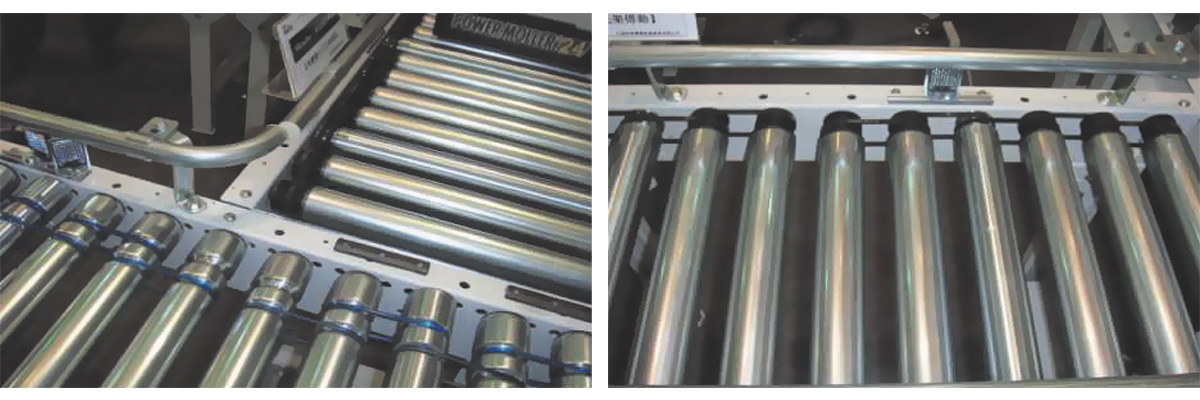

Multi wedge belt drive roller machine
Purpose:
It is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be placed on pallets or transported in turnover boxes.
Features:
The transmission power is large, the transmission system is compact, flexible, suitable for the transmission with small pulley diameter, and also suitable for high-speed transmission, with small vibration, less heating, and stable operation; Heat resistance, oil resistance, wear resistance, long service life.
|

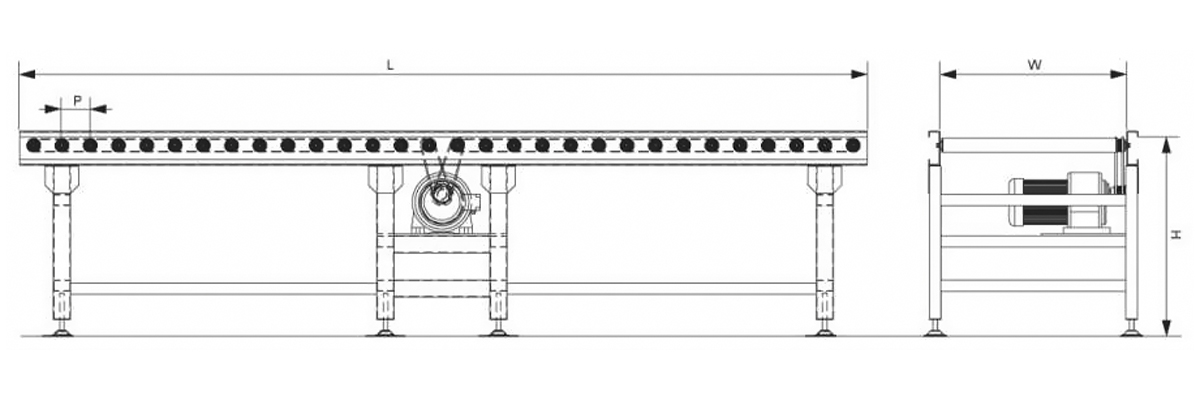

Roller diameter (d)
|
Φ50,Φ60
|
|
Roller spacing (P)
|
75,100,150
|
|
Machine length (L)
|
Max 8m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*15*3, aluminum profile 80*40
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 40m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
