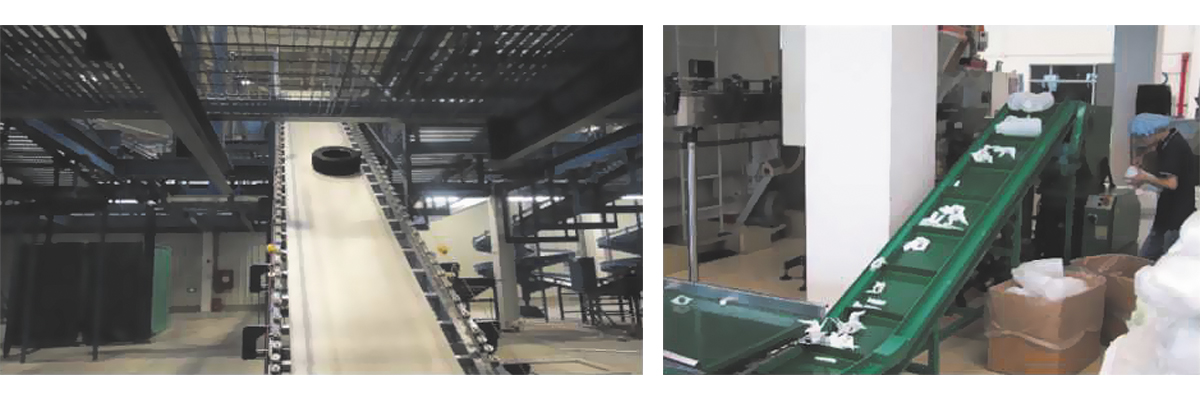

Slope belt conveyor
Purpose:
Climb the slope to transport all kinds of bulk materials, all kinds of cartons, bags and other pieces of goods with small single weight. Widely used in light industry, electronics, food, pharmaceutical, chemical, wood, machinery and other industries.
Features:
The belt conveyor climbs the slope and transports stably, and the material and the conveyor belt have no relative movement, which can avoid the damage to the conveyor. Low noise, suitable for quiet working environment. Simple structure and easy maintenance. Low energy consumption and low cost.
|
Supporting form
|
Idler type
|
|
Climbing angle
|
Max 30°
|
|

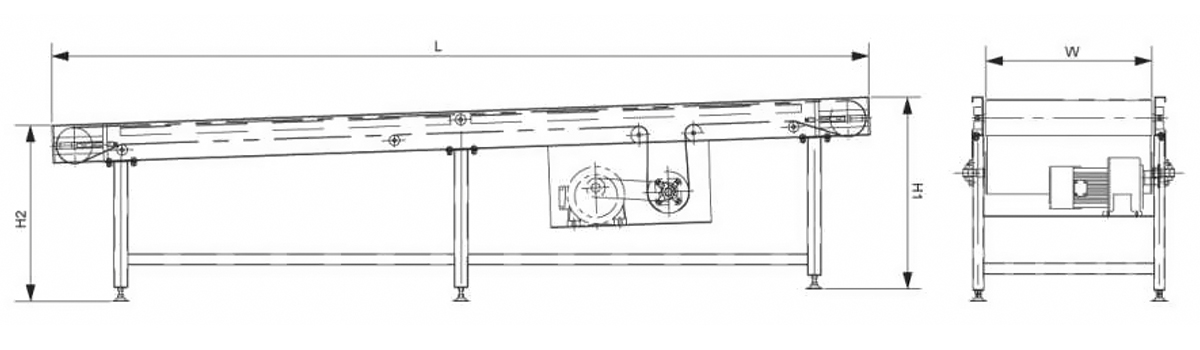

Machine length (L)
|
Max 20m
|
|
Belt width (W)
|
500, 600,700, 800,900,1000,1500
|
|
Low end machine height (H2)
|
500-1500
|
|
Belt material
|
PVC, PU
|
|
Frame profile
|
folded plate 120*40*15*3, aluminum profile 150*40, 80*40
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 80*40.40*40
|
|
Driving mode
|
Head drive, intermediate drive
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw, 0.55kw, 0.75kw, 1.5kw. 2.2kw
|
