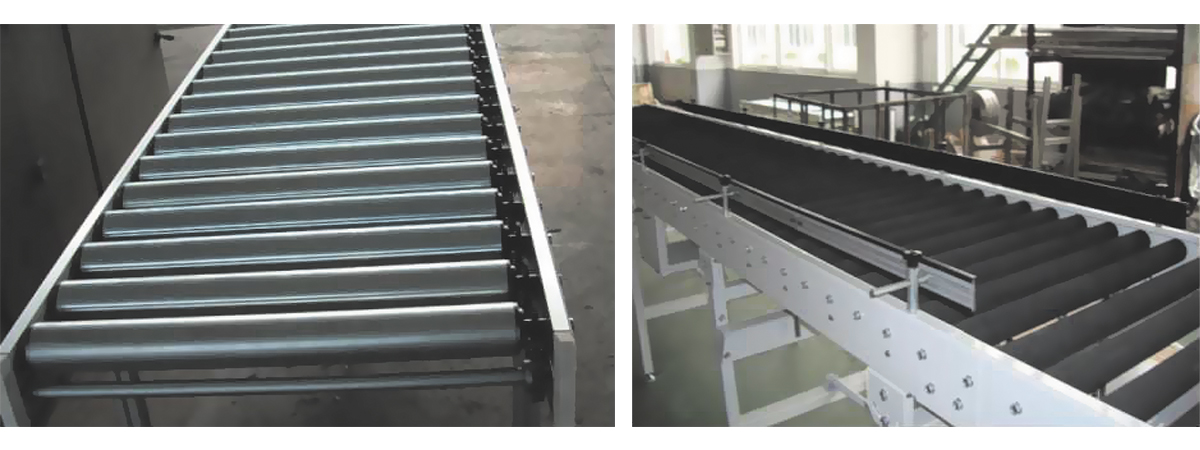

Single chain stacking roller machine
Purpose:
It is applicable to the transportation of various boxes, bags, pallets and other pieces of goods. Bulk materials, small items or irregular items need to be transported on pallets or turnover boxes. The transported items can stay and accumulate temporarily.
Features:
The whole machine is driven by a ring chain. The chain runs in a special guide rail and is driven in the middle. It has the characteristics of large conveying capacity, light operation, accumulation effect, low noise and so on.
|

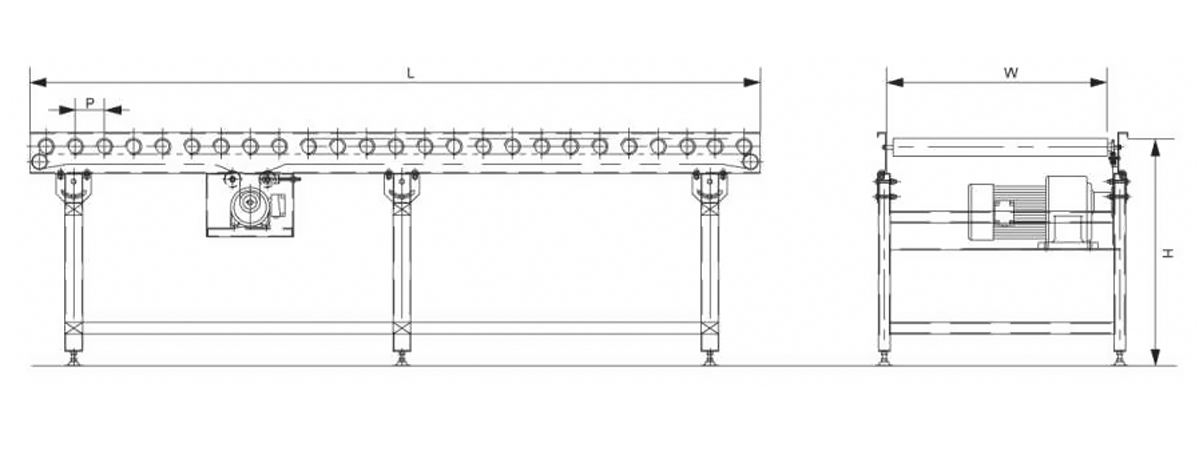

Roller diameter (d)
|
Φ50,Φ60,Φ76,Φ89
|
|
Roller spacing (P)
|
75,100,150
|
|
Machine length (L)
|
Max 20m
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 140*40*15*3, aluminum profile 130*23
|
|
Outrigger profile
|
square tube 60*40*2, aluminum profile 40*40
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
