Single chain bending machine
Purpose:
It is applicable to the turning transportation of various boxes, bags, pallets and other pieces of goods, bulk materials, small items or irregular items that need to be placed on the pallet or transported in the turnover box.
Features:
The whole machine is driven by a ring chain, and the chain runs in a special guide rail, which can change the conveying direction of the conveyor. It has the characteristics of large conveying capacity, light operation, low noise and so on.
|

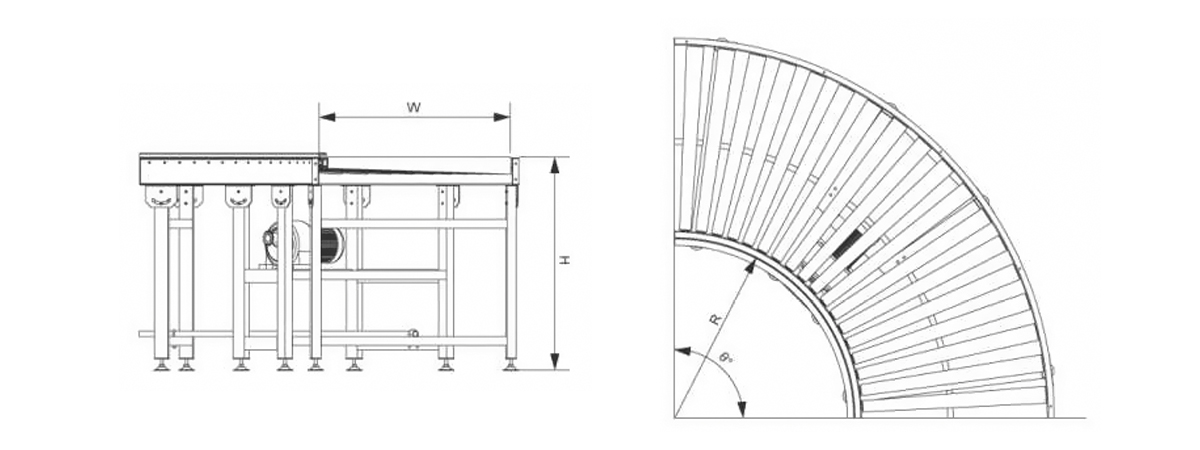

Diameter of small end of roller (d)
|
Φ50
|
|
Inner radius (R)
|
900
|
|
Turning angle (θ)
|
45°,60°, 90°
|
|
Included angle of roller (α)
|
≤5°
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*3
|
|
Outrigger profile
|
square tube 60*40*2
|
|
Conveying speed
|
Max 25m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw,1.5kw
|
