"O" type belt bending machine
Purpose：
It is applicable to the turning transportation, bulk materials, small items or irregular items of light goods such as all kinds of boxes, bags and pallets, which need to be transported on pallets or turnover boxes.
Features：
The whole machine passes through high strength О V-belt transmission, which can change the conveying direction of the conveyor, has the characteristics of beautiful appearance, stable transmission, low noise, easy disassembly and replacement, etc.
|

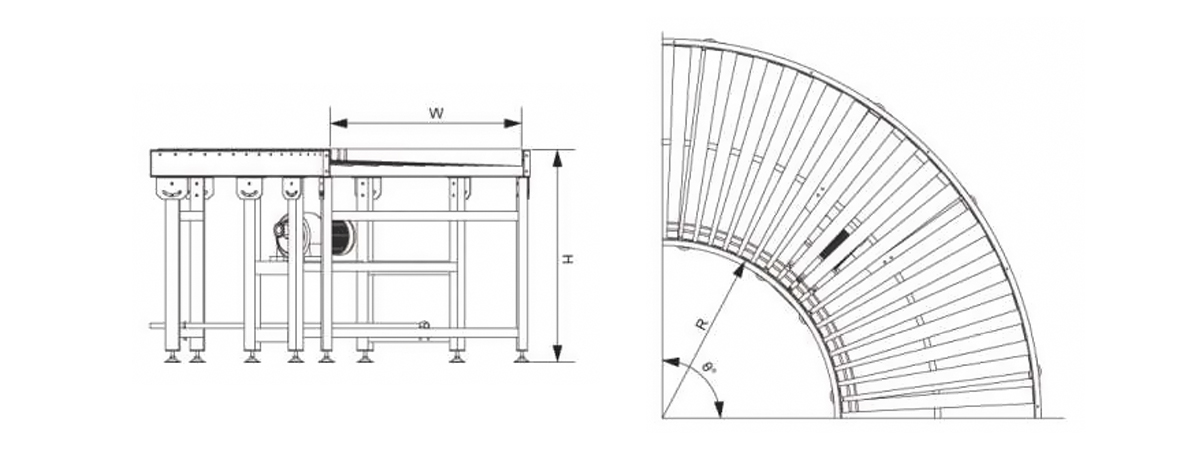

Diameter of small end of roller (d)
|
Φ50
|
|
Inner radius (R)
|
900
|
|
Turning angle (θ)
|
45°,60°, 90°
|
|
Included angle of roller (α)
|
≤5°
|
|
Effective width (W)
|
500,600,700, 800,900,1000,1500
|
|
Machine height (H)
|
500-1500
|
|
Frame profile
|
folded plate 120*40*3
|
|
Outrigger profile
|
square tube 60*40*2
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37kw,0.55kw,0.75kw
|
