Belt turning machine
Purpose:
It is widely used in light industry, electronics, food, pharmacy, chemical industry, wood industry, machinery and other industries.
Features:
Belt conveyor conveying smooth, material and conveyor belt no relative movement, can avoid the damage to the conveying. Low noise, suitable for quiet working environment. Change the direction of conveying objects, simple structure, easy maintenance, low energy consumption.
|

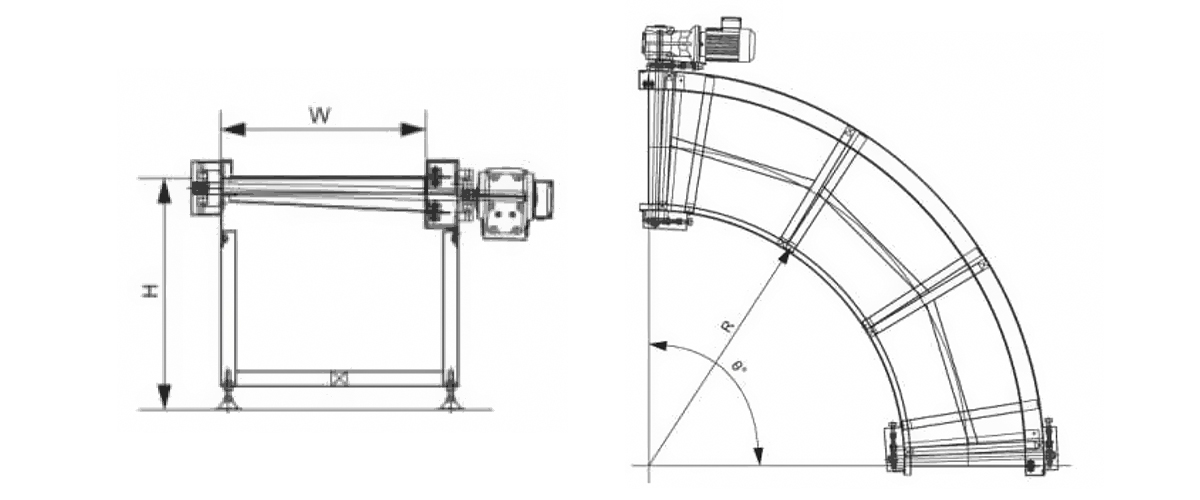

Diameter of small end of roller (D)
|
Φ 50
|
|
Inner radius (R):
|
900
|
|
Turning Angle (θ)
|
45°, 60°, 90°
|
|
Effective width (W)
|
500，600, 700，800，900，1000，1500 |
|
Machine is high (H)
|
500-1500
|
|
The belt material
|
PVC, PU
|
|
Rack profiles
|
the folded plate
|
|
Leg profile
|
square tube 60*40*2
|
|
Conveying speed
|
Max 30m/min
|
|
Motor power
|
0.37 kw, 0.55 kw, 0.75 kw
|
