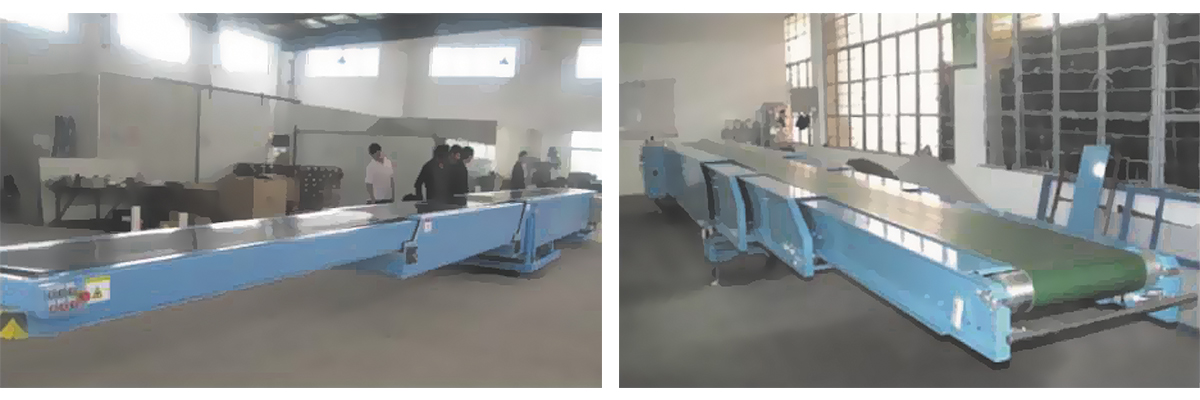

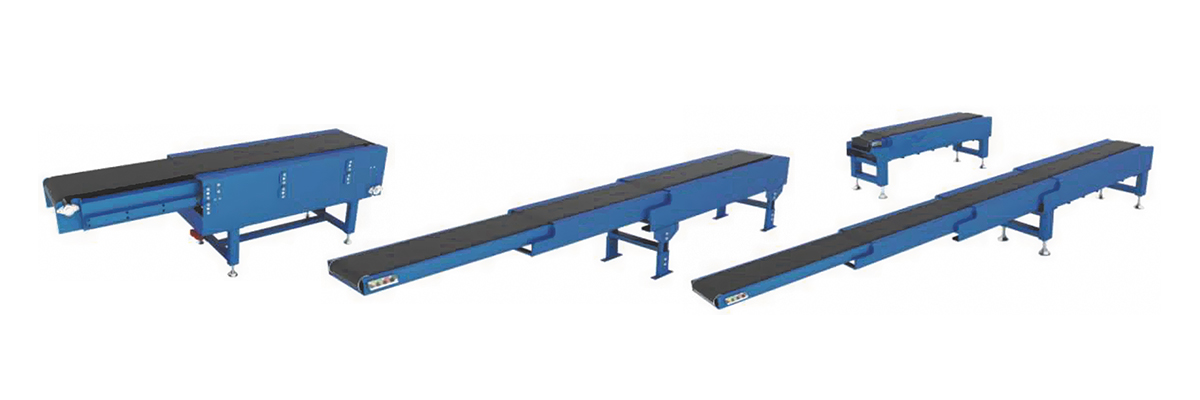

Telescopic belt conveyor
Purpose:
■ Suitable for all kinds of goods transportation
■ Mainly used for vehicle loading and unloading and cargo transportation with expansion requirements
Features:
■ Freely retractable in the length direction
■ Shorten the distance of manual round-trip handling of goods
■ Save time, reduce labor intensity and reduce cargo damage
■ Reduce costs and improve work efficiency
II. Abstinence
|
Fixed length
|
Expansion length
|
Total length
|
Conveying height (min)
|
|
3000
|
1800
|
4800
|
750
|
|
4000
|
2500
|
6500
|
750
|
|
5000
|
3400
|
8400
|
750
|
|
6000
|
4400
|
10400
|
750
|
III. Abstinence
|
Fixed length
|
Expansion length
|
Total length
|
Conveying height (min)
|
|
4000
|
5000
|
9000
|
910
|
|
5000
|
6800
|
11800
|
910
|
|
6000
|
8200
|
14200
|
910
|
|
7200
|
10000
|
17200
|
910
|
IV. Abstinence
|
Fixed length
|
Expansion length
|
Total length
|
Conveying height (min)
|
|
4000
|
6900
|
10900
|
1000
|
|
5000
|
9000
|
14000
|
1000
|
|
6000
|
12000
|
18000
|
1000
|
|
7200
|
13500
|
20700
|
1000
|
