Rotary table
Purpose:
■ Suitable for indoor environment

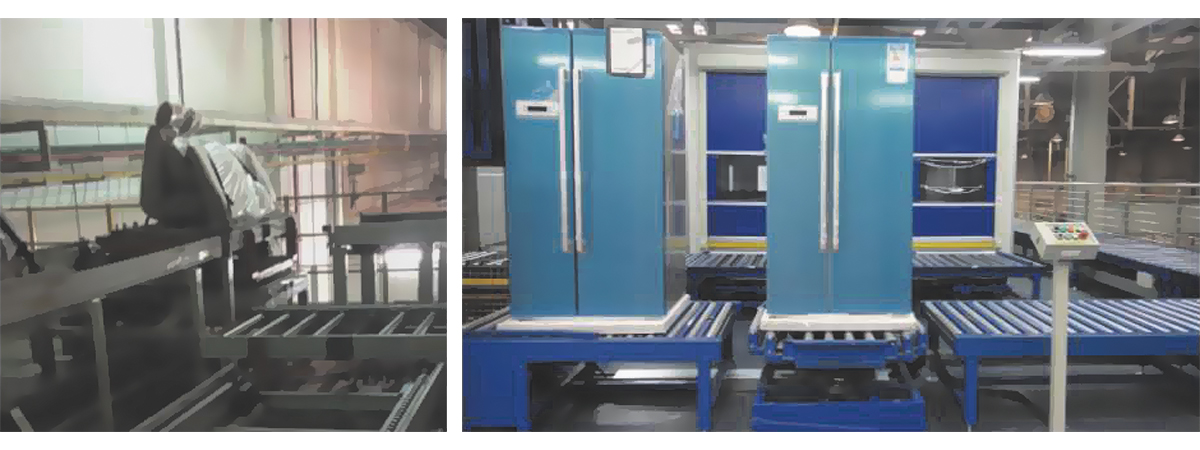

■ Used for rotary conveying of pallet goods
Features:
■ Economical, practical and cost-effective
■ Modular design, easy to disassemble and maintain
|

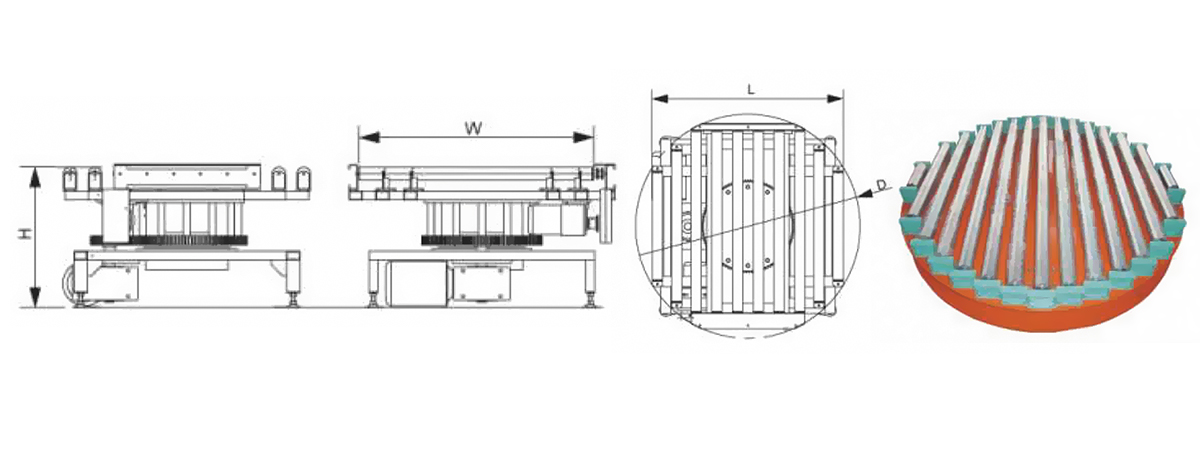

Rotation diameter (d)
|
min Φ500
|
|
Serie diameter (d)
|
Φ50， Φ60， Φ76， Φ89
|
|
Machine height (H)
|
650-1500
|
|
Effective width (W)
|
500-2000
|
|
Wheel spacing (P)
|
75, 100, 120, 150
|
|
Rotation angle
|
90°, 180°, 270°, 360°
|
|
Frame profile
|
folded plate 120*40*15*3
|
|
Outrigger style
|
square tube 60*40*2
|
|
Conveying speed
|
Max 20m/min
|
|
Rotating motor power
|
0.75kw, 1.5kw
|
|
Motor power for transmission
|
0.37kw, 0.55kw, 0.75kw, 1.5kw
|
