T200 Series Sprocket Steel Tapered Roller - Internal thread
Curve Conveying Roller Series
The different diameters over the length the tapered roller i.e. small one end and large the other end, provides a linear velocity to ensure smooth conveying of goods around the curve.
The roller axis is installed at a defined angle Θ/2(Θ=3.6°).
T100/200 Series Steel Taper Roller
Products Feature:
1. Steel tapered rollers are constructed with welded end caps. The bearing is pressed tightly into the steel bearing housing for maximum durability. The load capacity is greater than plastic bearing.
2. The environmental working conditions are broad. They can be used in both high and low temperature applications.
3. The design of the end cap protects the bearings by providing excellent resistance to dust and splashed water.
4. The taper can be customized (standard 3.6°).
5. The weight of single items to be conveyed should not exceed 200kg.
Tec Data:
Temperature range: -20°C～+80°C.
Material:
Bearing housing: Steel Zinc plated
End Cap: Polypropylene
Precision ball bearing: 6002
|

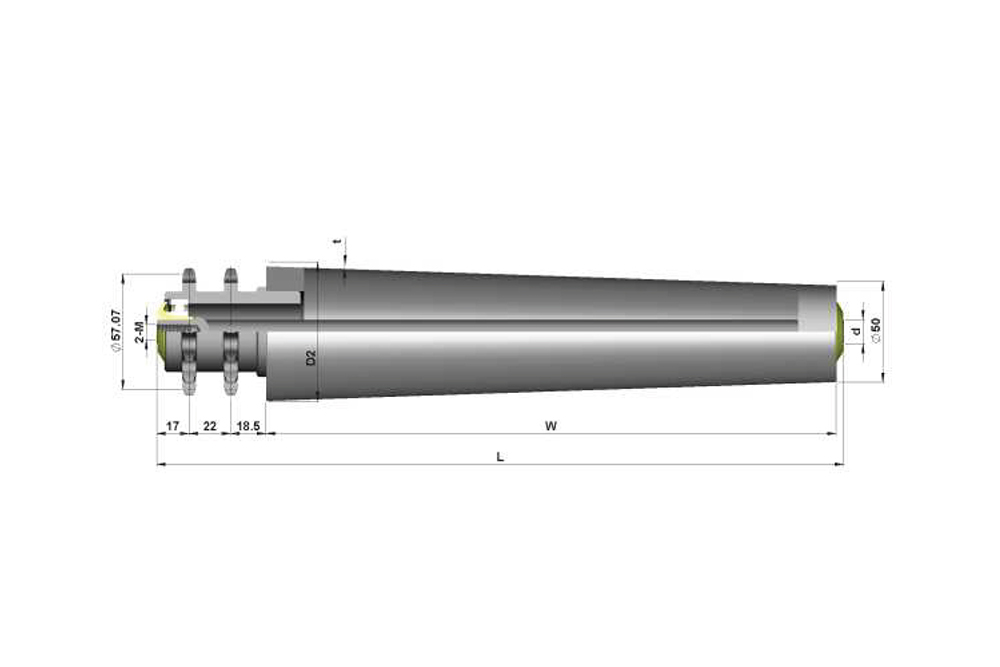

管徑/Tube Dia
|
軸徑/Shaft Dia
|
|
鏈輪/Sprocket
|
|
Φ50
|
Φ12/15
|
L=W+63
|
08B-14T
|
|
管材/Pipe
|
管徑/D*T
|
軸承/Bearing
|
軸處理/Shaft Dia
|
|
|
Φ12(M8*15)
|
Φ15(M10*20)
|
|||
|
鋼制鍍鋅 Steel zinc plated
|
50*2
|
6002
|
T100.JEA.ATC
|
T100.JEA.AVC
|
|
不銹鋼 Stainless steel
|
50*2
|
6002
|
T100.NEC.NTC
|
T100.NEC.NVC
|
